Collision Hulls in 3ds Max for Source
A collision hull (also known as a physics model, collision mesh or simply hull) is a simplified version of your model that is used for collision detection. By being a simplified version of the model, it saves the game engine all the effort of detecting collisions on complex shapes.
Things To Know
- Collision hulls must be Convex.

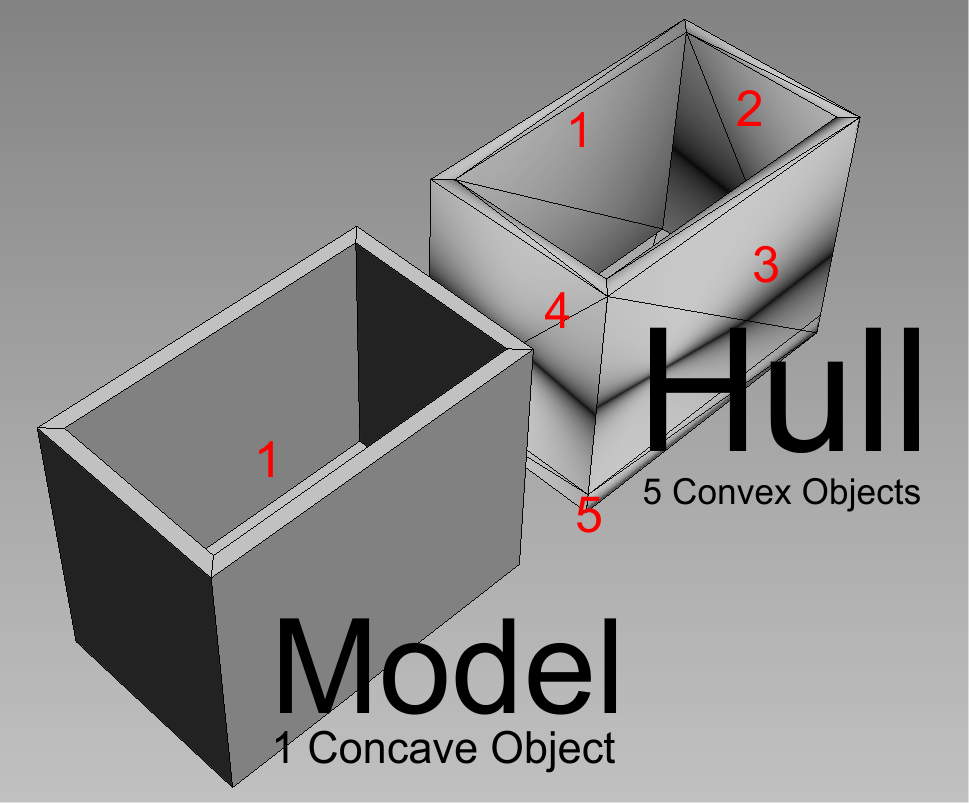

- If your model is complex and cannot be realistically wrapped in a single convex shape, then the hull must be separate convex pieces.
- If your hull is composed of multiple pieces, and each piece is an Element sub-object of a single mesh, then each element must have a single unique smoothing group that all faces in the element share.
- For multi-part hulls, your model QC file must have the $concave parameter.
Making a Collision Model
This page details making a hull using Wall Worm Model Tools and the Quick Hull feature.
- For each segment of the model that needs a hull, Detach it into its own element (or object*)
- Assign your mesh(es) to a WWMT Helper
- Press the Quick Hull button
- The $concave flag is automatically set
- Each Element of each mesh in your model will get a hull made from it
- Each hull will get a unique smoothing group
- All hulls are automatically assigned as hulls in the WWMT Helper
Fixing a Rotated Hull
Sometimes you will find that your collision hull is rotated 90 degrees from the model, especially if you did not compile with the $staticprop option.
While there are several reasons this could happen, the easiest solution in WW is usually to set an explicit collision model type. By default, Wall Worm will choose $collisionmodel for models using $staticprop and $collisionjoints when $staticprop is off. This, however, can lead to rotated hulls in some cases. As such, if you have a rotated hull, a quick solution is often to tell WW to use $collisionmodel. You can do this with the Choose Hull Type menu in the modify tab when you select the WWMT Helper in the scene.
General Hints
- *Any piece of the model that is broken into a separate Object (as opposed to Element) with the Editable Poly Detach function is no longer part of the model and must be re-assigned to the WWMT helper with the Add Sel or Append functions before the Quick Hull Function is run.
- When using Quick Hull, make sure there are no planar Elements. Planar elements will create invalid hull pieces.
- The Process Hulls function sets all the required smoothing groups.
- If your model is animated, you will need to skin the hull OR set each convex part of the hull as a linked child to a bone. Important: Each separate convex part of the hull must be skinned 100% to a single bone--and each bone can only have one convex hull unless you use the $concave option turned on! If you skin multiple hull parts to a single bone and do not check the $concave setting (which will export at $concaveperjoint with dynamic props), the Valve model compiler will collapse all of the parts into a single hull for that bone!
- For any model using Skin, you should generally never use the Rotate Origin option in WWMT.
- Also see Hull Helper for more advanced hull generation tools.
